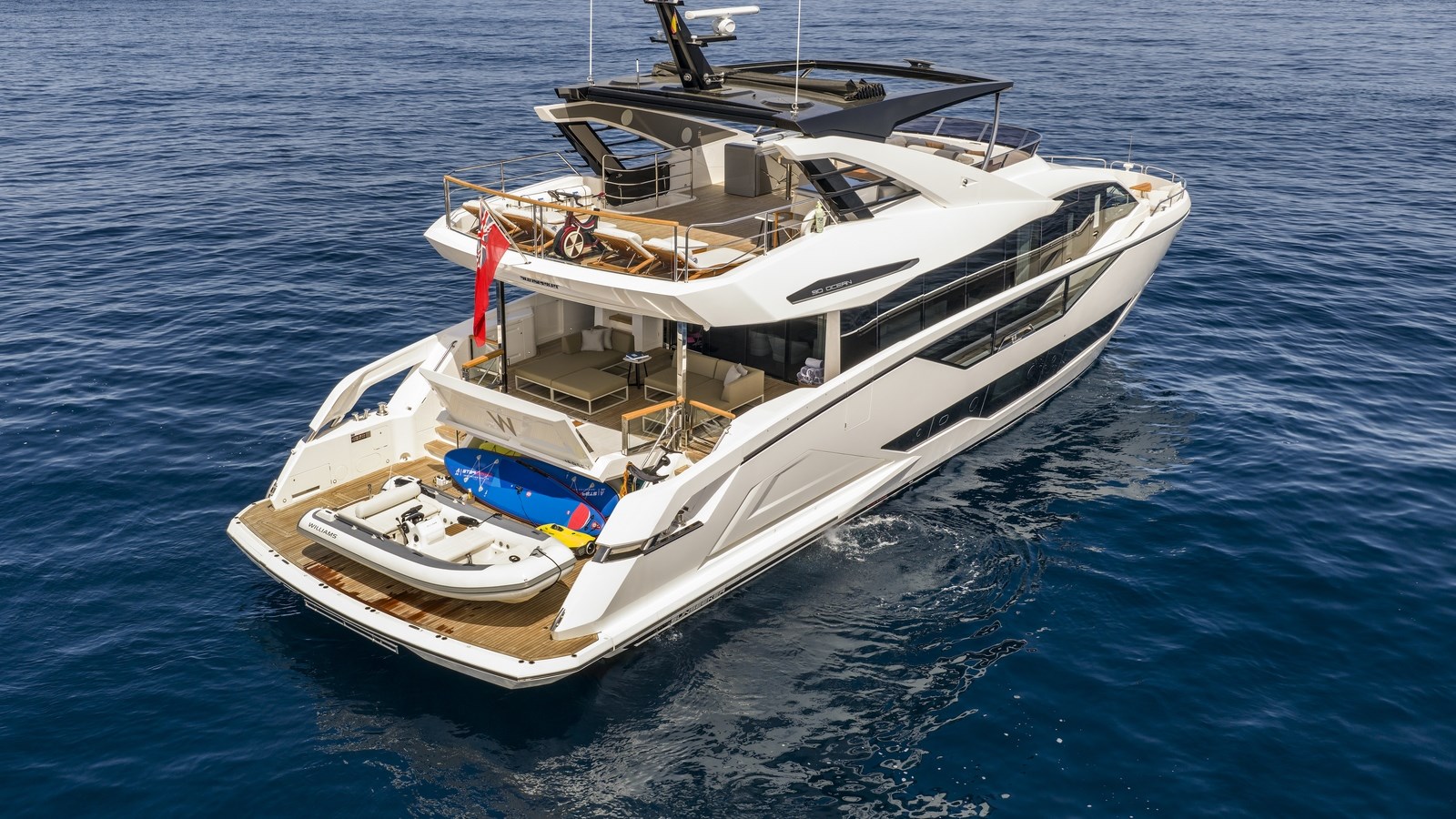

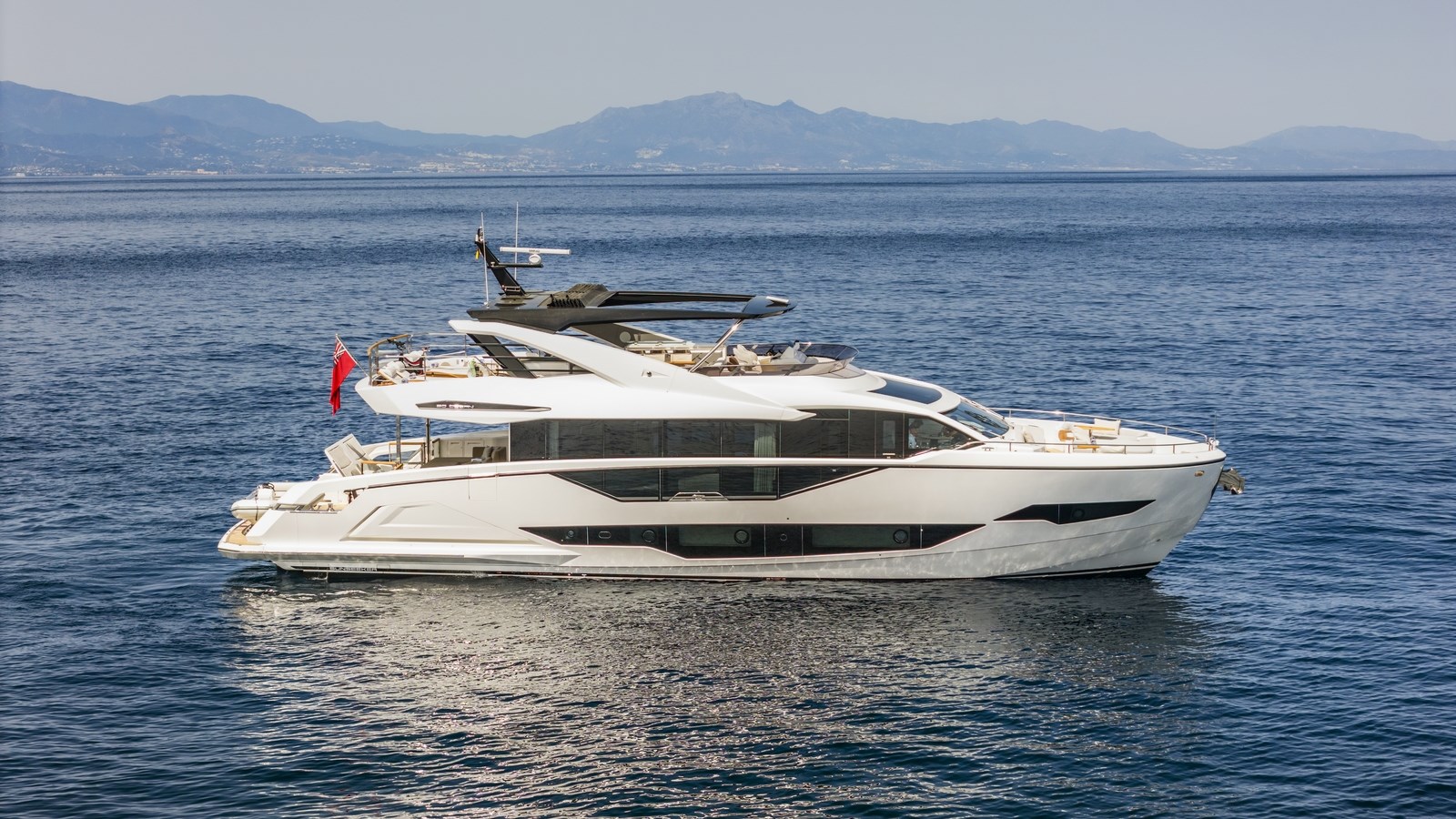

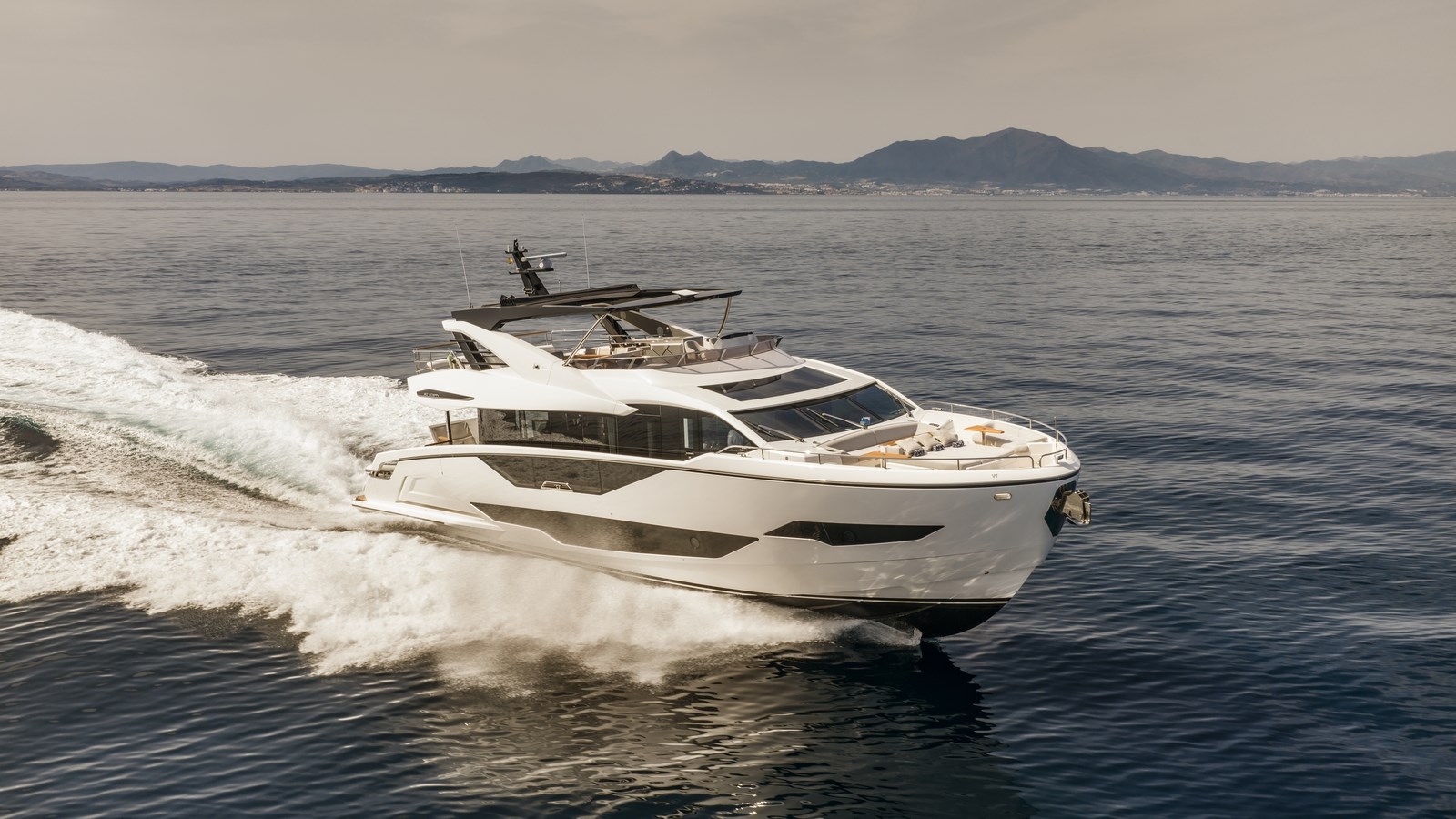

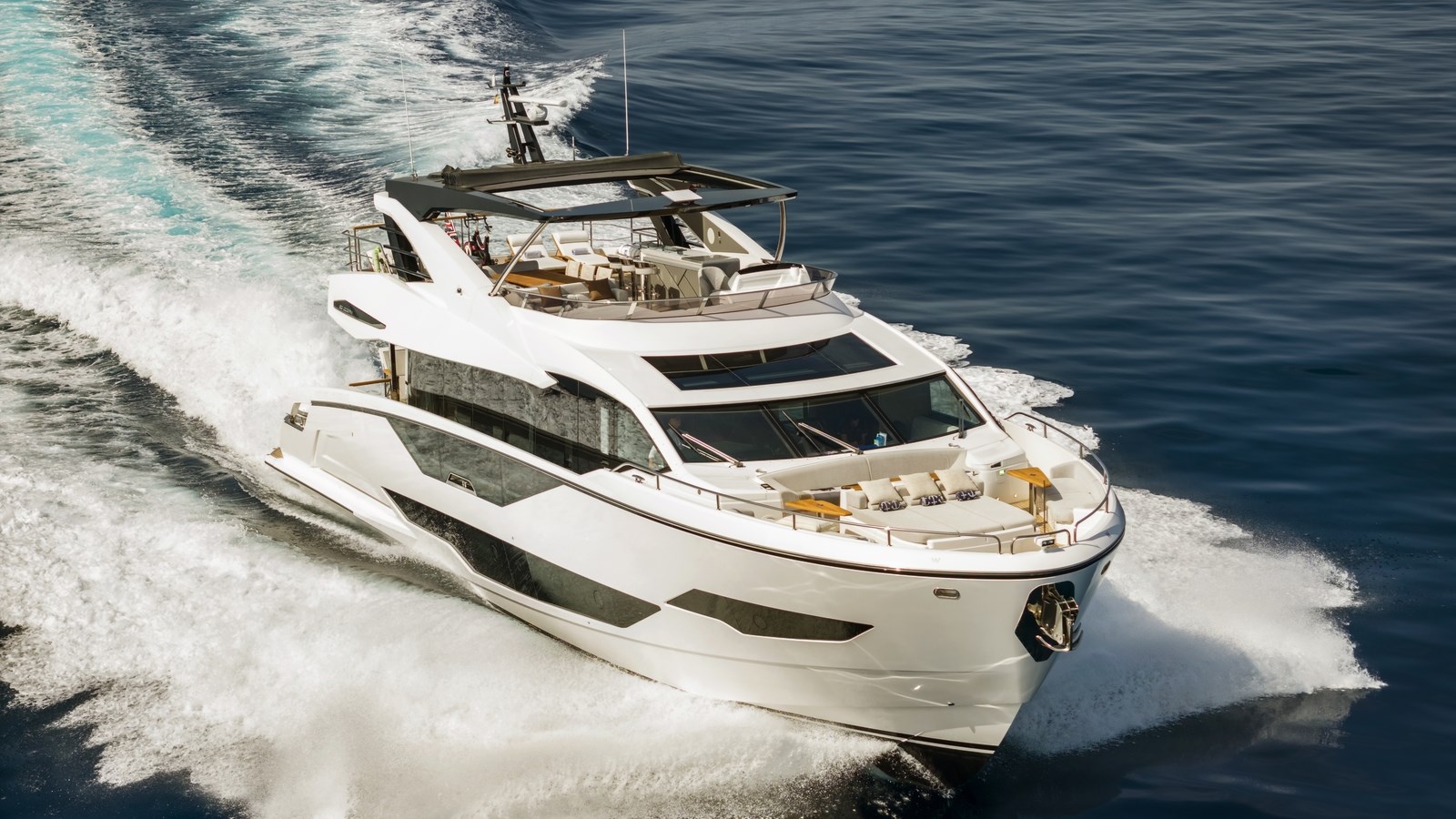

2022 SUNSEEKER 90 OCEAN

DESCRIPTION

Type: Motor Yacht, Flybridge

LOA: 88' 11'' /27.10m

Beam: 23' 6'' /7.16m

Draft min – max: (MAX) 6' 2'' /1.86m

Cabins / Guests: 4 / 8

Crew: 4

Builder: Sunseeker,

Model: 90 Ocean

Year built / Year refit: 2023 / -

Hull / Superstructure material: GRP / GRP

Engine: MAN 1900 hp

Country: Italy

City: Genova

Hull number: GB-XSK07806F223

Machinery

​1,100 nautical miles at 12 knots

• 2 x MAN V12 1900 diesel engines​

• @ September 21st P-1394 S-1387

• Maximum speed 29kts
• CMC Stabilis Electra HS60 fin stabilisation system.
• Hydraulic Sleipner stern thruster and MAN Aventics Marex OS 3D joystick docking system with dual-station controls.
• Fuel polishing system, portable oil transfer pump and trailing pumps.

GENERATORS AND AUXILIARY SYSTEMS

• 2 × 35 kW generators

• Khooler 35EFKOZD, 230V 152A, @September21st P-2955 S-2906

• Second shore power connection
• Atlas Autoshore 30 kVA shore supply voltage regulator

TANK CAPACITIES

FUEL: 13,000 l

WATER CAPACITY: 1.500

GREY WATERS: 1.250

BLACK WATER: 800

ANCILLARY EQUIPMENT

• Hydraulic Sleipner stern thruster
• CMC Stabilis Electra fin stabilisation system HS60 – 5 kW, 1.20 m² fins
• MAN Aventics Marex OS 3D joystick docking system with dual-station controls
• Fuel polishing system
• Portable oil-change transfer pump
• Trailing pumps
• Octo Marine Compact water softener
• Standby Gianneschi Ecoinox freshwater pump
• Freshwater anchor-chain wash system

SAFETY AND SECURITY EQUIPMENT

• CCTV system with three cameras: two infrared cameras in the engine room and one aft-facing camera beneath the flybridge overhang
• CCTV images displayed on the helm navigation screens
• Dometic MD 363 safe in the Master Stateroom
• Dometic MD 281 safe in the Forward VIP cabin
• Removable stainless-steel safety rails around the bathing platform
• 2 x 8-person Ocean Safety Ocean ISO liferafts
• 22 x adult life jackets (150N and 170N)
• 10 x children’s life jackets (150N)
• 1 x Global Fix RLB-41 EPIRB
• 1 x Hydro Fix HRU-100 EPIRB hydrostatic release unit
• 22 x portable fire extinguishers (powder, foam, CO₂ and gel)
• 2 x Fireboy NOVEC 34-litre fixed engine room fire suppression systems

COMMUNICATION EQUPMENT

• Simrad HS100 VHF radio with DSC at the main helm
• Simrad HS100 second-station VHF radio with DSC on the flybridge
• 2.4 m VHF antenna
• Simrad NAIS500 Class B AIS transponder with dedicated VHF and GPS receivers
• Zycoo U50 Hybrid IP PBX telephone exchange
• Yealink W52P DECT telephones in the main salon, Master Stateroom, Forward VIP cabin, port and starboard guest cabins, helm station and crew mess
• Cellular modem for GSM voice communication with external cellular and WLAN antennas

NAVIGATION EQUPMENT

• 2 × Simrad NSO Evo3S 24” displays with OP50 keypad controllers at the main helm
• 10” touchscreen for the Sunseeker monitoring system at the main helm
• Simrad Halo 6 Pulse Compression Radar, 6 ft, 72 nm
• Simrad GS25 GPS antenna
• Simrad AP44 autopilot system
• Simrad HS100 VHF radio with DSC
• 2.4 m whip VHF antenna
• Simrad B744V speed/depth transducer with water temperature
• Simrad SonarHub
• Simrad StructureScan 3D side-scan transducers
• Simrad NAIS500 Class B AIS transponder with dedicated VHF and GPS receivers
• Simrad 110WX ultrasonic wind sensor
• Ritchie Helmsman HF-743B magnetic compass at the main helm
• 2 × Simrad NSO Evo3S 19” displays with OP50 keypad controllers on the flybridge
• 10” touchscreen for the Sunseeker monitoring system on the flybridge
• Simrad AP44 autopilot system on the flybridge
• Simrad HS100 second-station VHF radio with DSC
• Ritchie Helmsman HF-743W magnetic compass on the flybridge

DECK EQ.

• Twin anchor windlass arrangement
• Freshwater anchor-chain washing system
• Hydraulic bathing platform
• Retractable cleats for securing the tender on the bathing platform
• Removable stainless-steel safety rails around the bathing platform
• Flybridge hardtop with retractable central canopy and extending aft sun canopy
• Teak decking on the flybridge
• Foredeck sail canopy with eight carbon-fibre support poles
• Electrically operated aft-cockpit privacy screen
• X-TEND™ electrically operated convertible sun-loungers
• Offset-post parasol with sockets on both sides of the foredeck

AUDIO VISUAL ENTERTAINMENT

• Samsung 65” QLED 4K television in the main salon, mounted on an electric hinge
• Samsung 55” QLED 4K television in the Master Stateroom
• Samsung 55” 4K television in the forward VIP cabin
• Samsung 55” 4K televisions in the port and starboard guest cabins
• Apple TV application and AirPlay 2 connectivity
• Ultra HD Blu-ray players in the main salon, Master Stateroom and forward VIP cabin
• Proficient soundbars with Sonos amplifiers
• Sonance speakers and Sonos subwoofers
• Additional Sonance speakers in the dining, helm and observation areas
• Aft-cockpit audio zone with 4 × Sonance 8” speakers
• Beach Club audio zone with 4 × Sonance 8” speakers
• Flybridge audio zone with 8 × Sonance 8” speakers
• Foredeck audio zone with 4 × Sonance 6.5” speakers
• Multi-zone audio controlled through the Sonos application

GALLEY AND DOMESTIC EQ

• Enclosed galley with an internal access door and serving shutter
• Pantograph-style galley door providing direct access to the side deck
• Additional custom under-counter galley refrigeration
• Miele built-in Nespresso coffee machine, model CVA 6431
• Miele wine cooler, model KWT 6321 UG, with capacity for 34 bottles
• Separate Miele washing machine and tumble dryer in the crew mess
• Victrifrigo IM Classic Hydro ice maker in the aft cockpit
• 2 × stainless-steel drawer refrigerators on the flybridge
• Marine Electric/Techimpex BBQ74 stainless-steel electric grill on the flybridge
• Octo Marine compact water softener connected to the domestic freshwater system
• Gianneschi Ecoinox 2CE 24V DC standby freshwater pump

ACCOMODATION

4 guest cabins accommodating up to 8 guests

4 cabins, Vip: double bed Master: Double bed 2x twins: both can be

double beds but also split into two singles.
